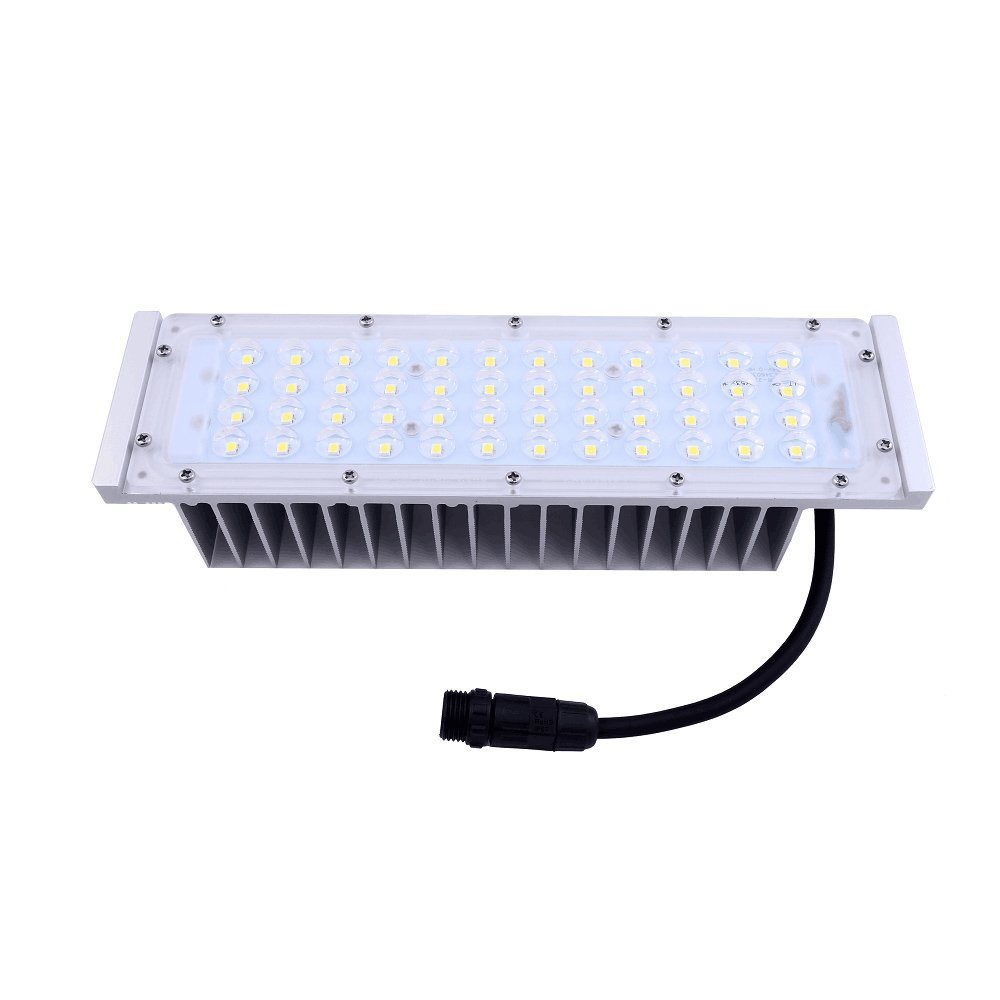

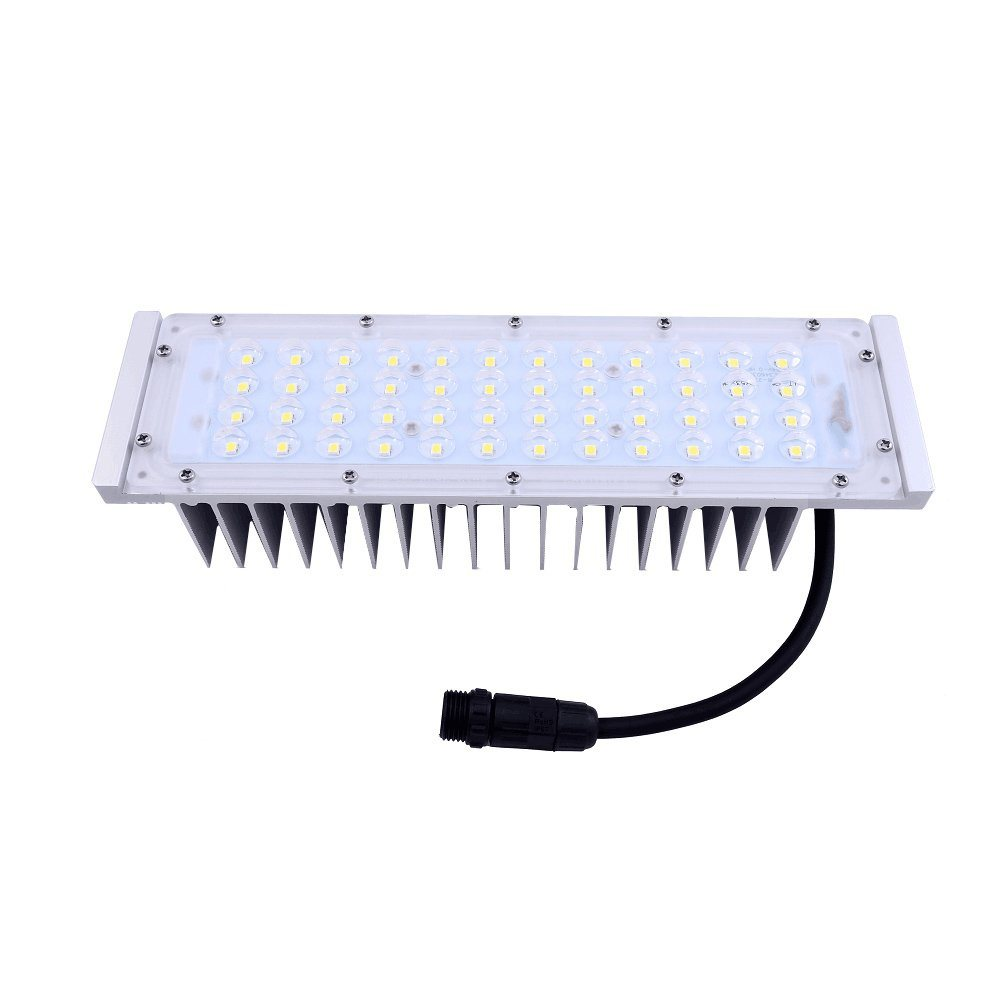

Main Features

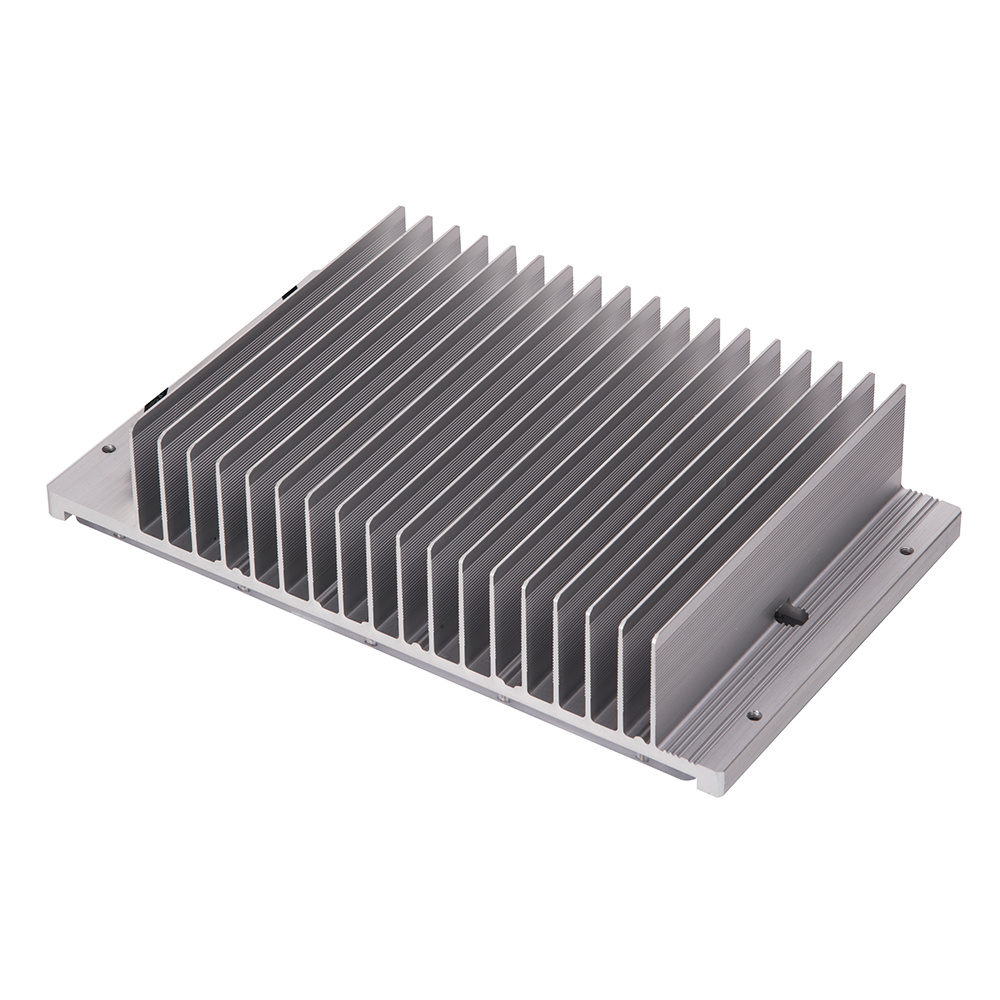

● Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.● Excellent operating temperature-40°℃~ 50°C
● High performance design with multi-chips Package 5050 LED source.Stable
performance,low light failure and no dead lights.
●ExclusiveLens.The light transmittanceup to 98%.Luminous efficacy up to 190lm/w.●150x70°,150x90°,145x100°lens optional.Uniformlight distribution apply to different
streetlight project.
●Replaceable and upgradable modular design easy assembly,easyinstallation,
easy maintenance.
●Green product,no UV,IR radiation or mercury pollution.Passed IEC62471…● With Excellent housing design reach IP67 rating.
● Double Clip on closure,"Plug and Play" system suitable for SKD.● CE,Rohs,UL,LM-79,LM-80 approved.
● Life-span over 50,000 hours,5 years warranty.
Power | 30W | 40W | 50W | 60W | ||
Input Voltage | 42V | 43V | 44V | 45V | ||
Output Current | 0.72A | 0.93A | 1.14A | 1.33A | ||
Photometric Specifications | ||||||
LEDs | 5050 LED | |||||
CRI | > 70(>80,>90 optional) | |||||
Luminous Efficiency | 190lm/w 180lm/w | 170lm/w | 160lm/w | |||
Luminous Flux(±5%) | 5700lm 7200lm | 8500lm | 9600lm | |||
CCT | 2800K/4000K/5000K/5500K | |||||
Beam Angle | 150x707150x907145x100° | |||||
LED Qty | 28pcs | |||||
Lens Arrangement | 8-6-6-8 | |||||
Mechanical Specifications | ||||||
IP Rate | IP67 | |||||
Working Environment | -40°C~50°C,20%~90% H.R | |||||
Storage Temperature | -40°C~85°C,10%~90% H.R. | |||||
Body Material | Aluminum AL6063-T5 | |||||
Lens Material | PC | |||||
Connector Size | M15 | |||||
Wire Length | 200mm/300mm optional | |||||

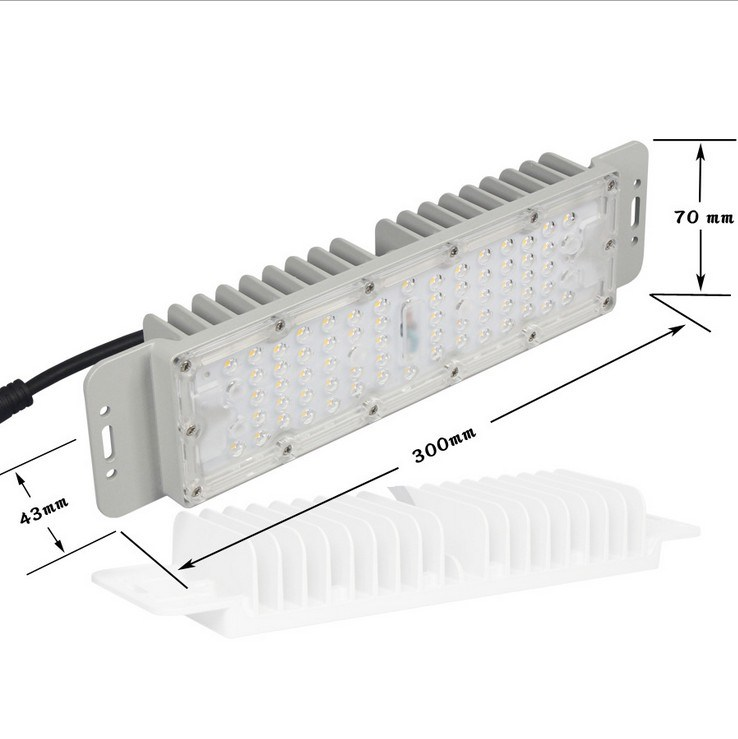

Module Size(mm) | 300x75x50 | |||||
ModuleSize(inch) | 11.81x2.95x1.97 | |||||
Lifespan | >50,000 Hours |
