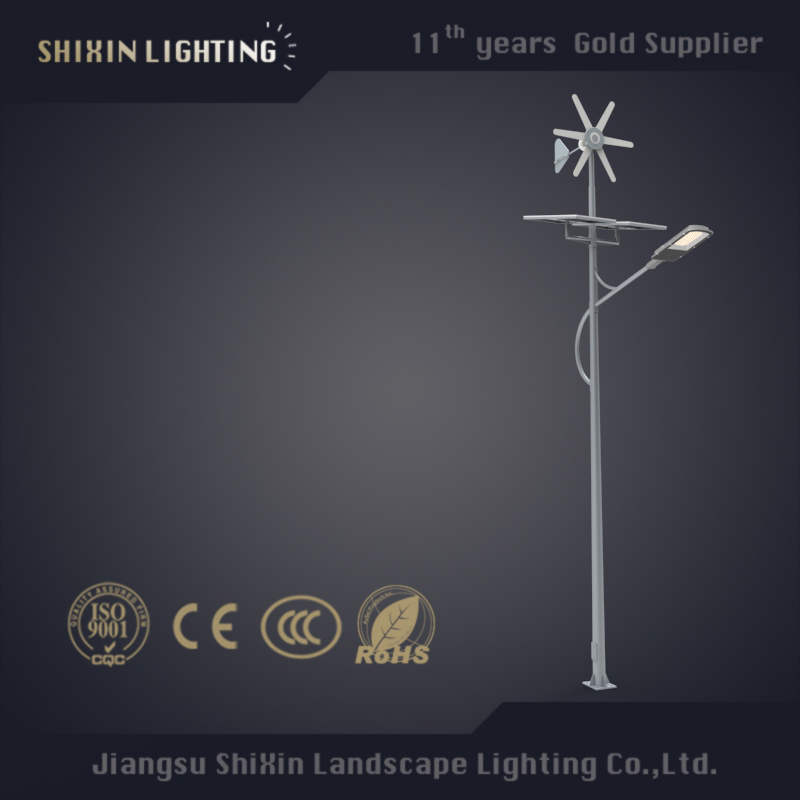

30w,40w.50w.60w.80w.100w.120w solar wind street light

1

Solar Panel

230W

· Polysilicon solar panel

· Maximum power at STC: 230W/PCS

· Power tolerance: ±5%

· Working temperature: -40℃to 85℃

· Panel dimension: 1640×992×40×35mm

· Working life ≥ 20 years

· Warranty: 5 years

2

Led Lamp

100W

· Model: 100W LED LAMP

· Power Factor:0.98

· Efficiency:120lm/w

· Lumen:12000lm

· Surge protection:4/4

· Temperature Rating:-40℃～+55℃

· Protection: IP65

· Chip: Bridgelux

· TC:3000–6500K

· Working life:≥ 50000 hours

· High efficiency led lamp

· Aluminum model led lamp shell

· Warranty: 5 years

· Lamp dimension: 610*260*62mm

3

Battery

12V

200AH(2*100AH)

· Gel lead acid storage battery

· Nber of cycles at 80% of discharging:600

· Nber of cycles at 30% of discharging:1800

· Work TM: -35℃ to 60℃

· Working life ≥ 10 years

· Warranty:5 years

4

Battery Box

SX-XDCX

· Plastic box waterproof

· Excellent performance in heat preservation

· Service life ≥20years

The product contains clamp, stainless steel screws, hose, sealing ring

· Warranty:20 years

5

Wind Turbine

600W

· 600W high efficiency wind turbine

· Start-up air speed: 2.0 m/s,rated wind speed: 10 m/s

· Safety wind speed: 45m/s

.With 6 leaf installation the three screws, easy installation

6

Controller

12/24V 20A

· Overheating

· Over discharging

· Automatic light and time control

· Over charging·Load overload

· Load short circuit

· PV reverse polarity

· Battery reverse polarity

· Warranty: 5 years

7

Light Pole

10M

· Material: Steel

· Height: 8m

· Diameter: 82-182mm, 3.75mm thickness

· With 1m single arm

· Flange: 350*350*18mm

· Hot deep galvanized and powder coating

· Working life ≥25 years

· With solar bracket

· With 4*M18*800MM anchor bolts and cable connection box

· With accessories including bolts, nuts and fasteners

· For wind: 45M/S

· Warranty 25years
